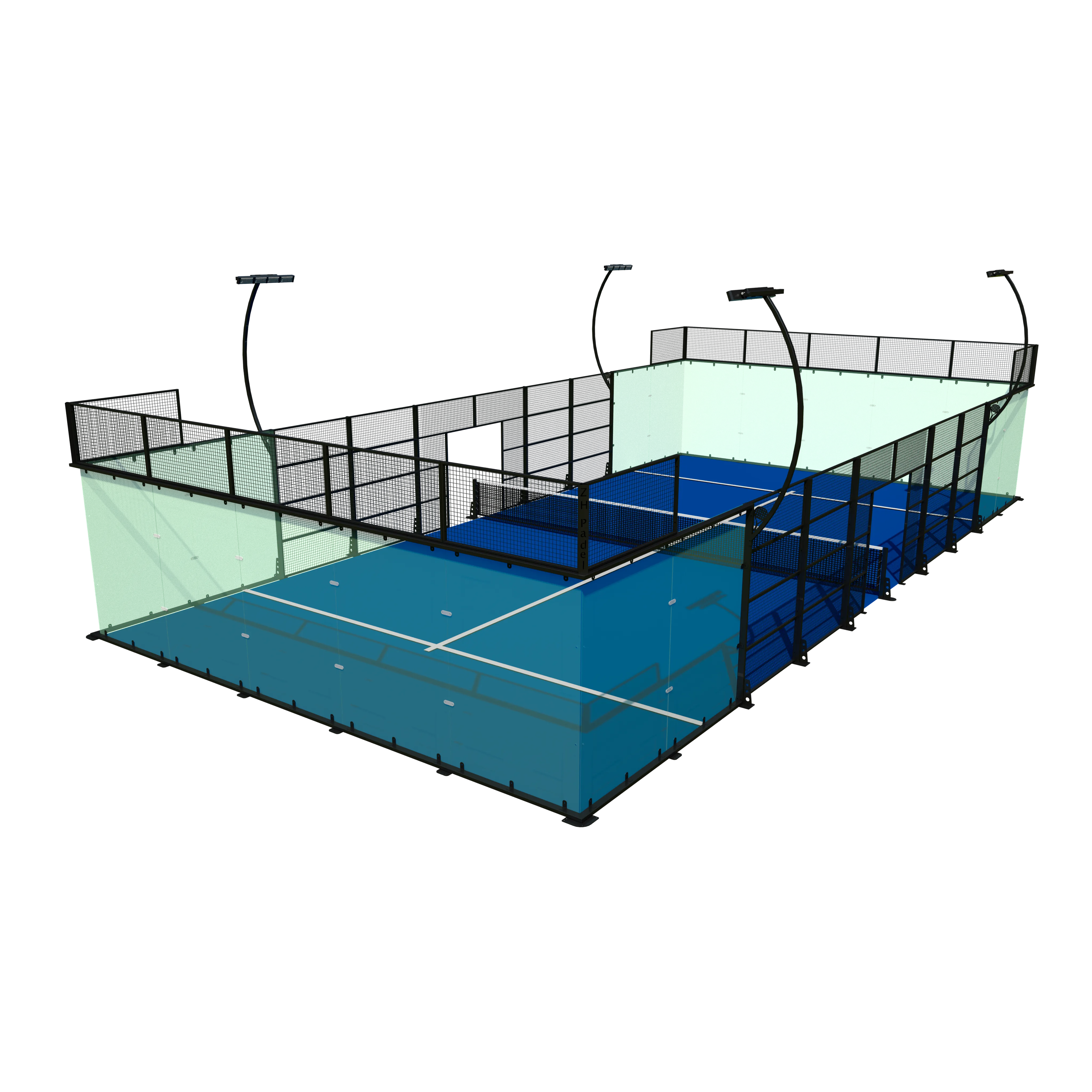

THE PANORAMIC (Court Model)

Super Panoramic court is engineered with a reinforced steel structure, coated with QUALICOAT®-certified polyester powder paint (C4 level) for long-lasting protection.

Standard Dimensions: 10 × 20 m (32.8 × 65.6 ft) interior of the court
Panoramic View: No metal posts in the glass corners (360º visibility)
Wind Resistance: Tested to resist winds up to 120 km/h (75 mph)
Flexibility: Suitable for both indoor and outdoor installations
Portability: Portable version available for temporary events or rented venues

Paint finish & Durability

All metallic components are coated with thermosetting polyester powder paint. This QUALICOAT-certified finish ensures:

Excellent corrosion resistance
UV stability
High mechanical impact resistance

For coastal areas, an additional two-coat pure epoxy primer system is available.

The Full Panoramic court includes a professional LED system by Led Projects (LINE model), featuring 8 spotlights of 150W each. This system provides uniform, high-quality illumination for all playing conditions.

Pole Designs: Three options available: curved (default), Z-shaped, and straight.
Customization: All poles can be finished with corrosion-resistant coating to match the court.
Upgrades Available: Enhanced lighting for competition-level venues and TV broadcasts.
Compliance: Fully compliant with FIP regulations for indoor and outdoor use.

The court features 12 mm tempered safety glass, engineered for superior strength and visibility. The design eliminates vertical posts in the corners for a seamless 360° experience.

Panel Dimensions: 2000 × 3000 mm (6.56 × 9.84 ft)
Installation: High-strength polymer sealing system at the joints.
Benefits: Improved structural cohesion, shock absorption, and vibration damping.
Safety: Certified for high-impact resistance and designed to prevent shattering.
Compliance: Meets European and American safety standards and FIP guidelines.

This model includes high-performance turf by , designed specifically for padel. The standard model uses Professional Texturized Turf.

Specs: 10mm, Density: 46200 needles/㎡, Dtex:13500, Backing: PP+PP+PU
Infill: Silica sand infill for excellent grip and controlled speed.
Colors: Available in green or blue.
Upgrade Option: 12mm, Density: 63000 needles/㎡, Dtex:9500, Backing: PP+PP+PU
Warm Climates: Monofilament options available for better heat resistance.

All turf types are compliant with FIP standards and trusted in international tournaments.
